Inspired by our MotoAmerica® King of the Baggers™ race bikes, the CVO Road Glide ST features lightweight carbon-fiber parts, competition-inspired electronic assists, and the Milwaukee-Eight® 121 High Output V-twin engine, bringing track-ready performance and engineering to the streets.

仕様

  • ディメンション
    add remove
    • 長さ:
      2410 mm
    • シート高、非積載時:
      720 mm
    • レイク:
      26
    • トレール:
      170 mm
    • ホイールベース:
      1625 mm
    • タイヤ、フロント仕様:
      130/60B19 M/C 61H
    • タイヤ、リア仕様:
      180/55B18 M/C 80H
    • 燃料容量:
      22.7 l
    • オイル容量(フィルターあり):
      3.8 l
    • 出荷時重量:
      363 kg
    • 車両重量:
      380.11 kg
    • ラゲッジ積載容量(容積):
      2.42 cu ft (0.069 m3)
    • タイヤ、タイプ:
      Dunlop® Harley-Davidson Series, bias blackwall front and rear
  • エンジン
    add remove
    • エンジン:
      Milwaukee-Eight® 121 High Output
    • ボア:
      103.5 mm
    • ストローク:
      117.5 mm
    • 排気量:
      1977 cm3
    • 圧縮比:
      11.4:1
    • フューエルシステム:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • エキゾースト:
      2-1-2 dual exhaust, Titanium mufflers with carbon fiber end caps
  • パフォーマンス
    add remove
    • エンジントルクテスト方法:
      J1349
    • エンジントルク:
      197 Nm
    • エンジントルク(RPM):
      4000
    • リーンアングル、右(度):
      32
    • リーンアングル、左(度):
      32
    • 燃費テスト方法:
      Estimated City/Hwy
    • 燃費:
      44 mpg (5.3 l/100 km)
  • ドライブトレイン
    add remove
    • プライマリードライブ:
      Chain, 34/46 ratio
    • ギア比(全体) 1ST:
      10.233
    • ギア比(全体) 2ND:
      7.093
    • ギア比(全体) 3RD:
      5.268
    • ギア比(全体) 4TH:
      4.266
    • ギア比(全体) 5TH:
      3.635
    • ギア比(全体) 6TH:
      3.067
  • シャシー
    add remove
    • フロントフォーク:
      47 mm Inverted 1x1 Front Forks with adjustable preload, compression damping and rebound damping
    • リアショック:
      Emulsion suspension with adjustable preload, compression damping and rebound damping
    • ホイール、フロントタイプ:
      Black, 7-spoke Cast Aluminum
    • ホイール、リアタイプ:
      Black, 7-spoke Cast Aluminum
    • ブレーキ、ロータータイプ:
      Wave Style, dual floating rotors (front), fixed rotor (rear)
    • ブレーキ、キャリパータイプ:
      32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
  • インフォテインメント
    add remove
    • スクリーンサイズ:
      12.3 in
    • インフォテインメントシステム:
      Skyline™ OS
    • タイプ:
      Full Color TFT
    • チャンネル当たりのワット数:
      125
    • スピーカー:
      4
    • スピーカーサイズ:
      Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
    • AM:
      Standard
    • FM:
      Standard
    • SDカード、フラッシュドライブおよびMP3 - USB接続経由:
      Supported
    • 言語:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • ハンズフリー携帯電話 - BLUETOOTH経由:
      Standard
    • 音声認識対応言語: 電話機能のみ:
      Phone dependent
    • 音声認識対応言語:チューナー/メディア/ナビゲーション:
      Phone dependent
    • 文字読み上げ(TTS)対応言語:
      Phone dependent
    • ライダー/パッセンジャーインターコム:
      Standard (Passenger Headset Sold Separately)
    • 車両情報スクリーン(気温、オイルプレッシャーおよびEITMS):
      Standard
    • USB:
      USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage
    • Bluetooth:
      Phone/Media Player, Headset

詳細のお問合わせ

必須項目
必須項目
必須項目
必須項目
必須項目
このサイトはreCAPTCHAによって保護されており、Google社のプライバシーポリシーと利用規約が適用されます。

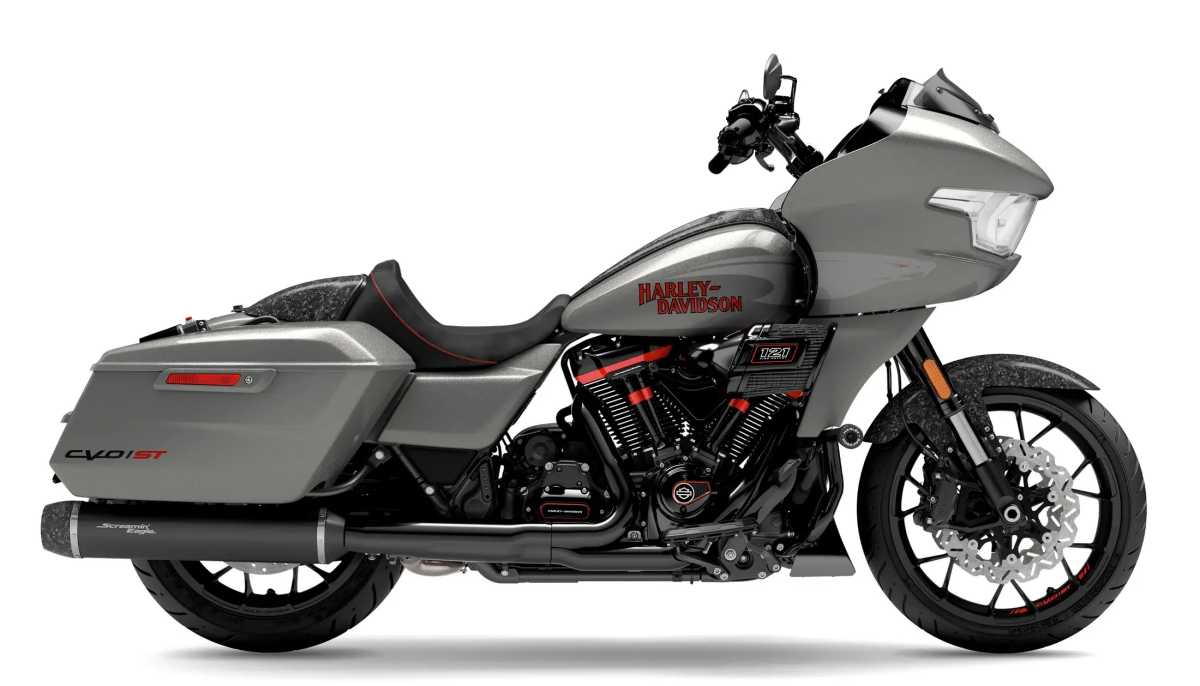

2025 Harley-Davidson® CVO™ Road Glide™ ST Rally Red
